Digital Transmission Range (TR) Sensor: Removal

  1. Remove the main control cover. Refer to MAIN CONTROL COVER .
  2. Disconnect the selector lever cable end from the manual control lever.

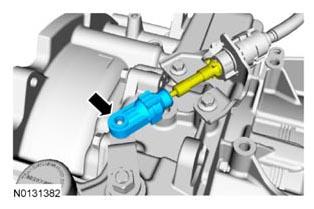

    Fig 1: Locating Selector Lever Cable End
    G07931982Courtesy of FORD MOTOR CO.
  3. Remove the manual control lever nut and the manual control lever.

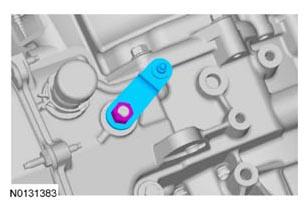

    Fig 2: Identifying Manual Control Lever Nut
    G07931983Courtesy of FORD MOTOR CO.
  4. Disconnect the TR sensor electrical connector.
    Fig 3: Locating TR Sensor Electrical Connector
    G07931984Courtesy of FORD MOTOR CO.
  5. Remove the TR sensor detent spring bolt and the TR sensor detent spring.

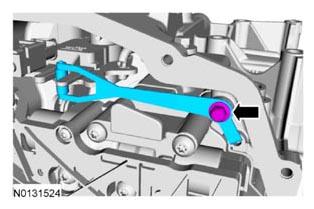

    Fig 4: Locating TR Sensor Detent Spring Bolt
    G07931985Courtesy of FORD MOTOR CO.
  6. Using a small pair of locking pliers, remove and discard the TR sensor locking pin.

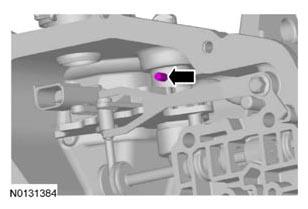

    Fig 5: Locating TR Sensor Locking Pin
    G07931986Courtesy of FORD MOTOR CO.
  7. Remove the TR sensor in the following sequence.
    1. Hold the TR sensor in place and slide the manual shaft outward until the manual shaft is out of the transmission case.
    2. Remove the TR sensor from the transmission, leaving the park pawl actuating rod attached to the TR sensor.

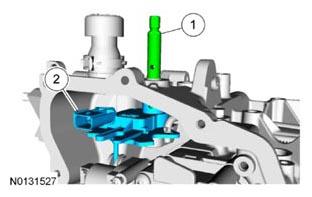

      Fig 6: TR Sensor Removing Sequence
      G07931987Courtesy of FORD MOTOR CO.
