Reverse Position Power Flow

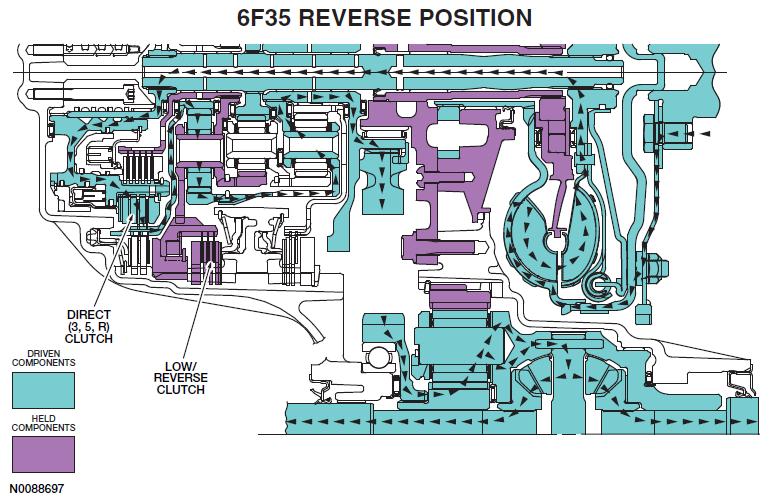

Fig 1: Reverse Position Power Flow Diagram
G06096895Courtesy of FORD MOTOR CO.
