Liftgate Release Switch: Notes

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

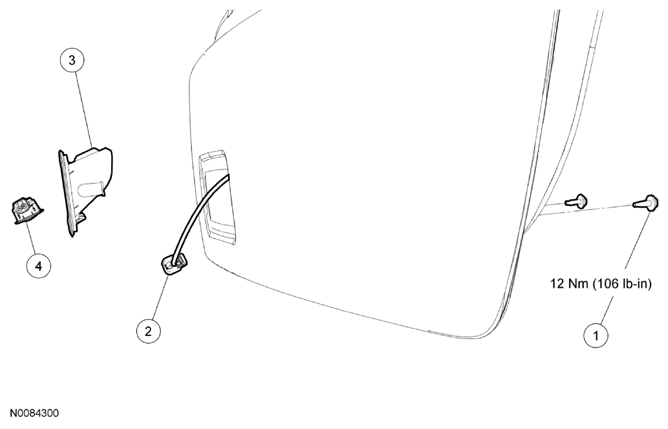

Fig 1: Liftgate Release Switch Replacement Components With Torque Specifications
G07935087Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505423 Liftgate release switch molding bolts (2 required)
2 - Liftgate release switch electrical connector (part of 14A583)
3 13508 Liftgate release switch molding
4 14018 Liftgate release switch
