Liftgate Latch Manual Release

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate latch access cover from the center of the liftgate trim panel.
    Fig 1: Locating Liftgate Latch Access Cover
    G07935065Courtesy of FORD MOTOR CO.
    2. NOTE: Portions of the liftgate sheet metal are removed for clarity.

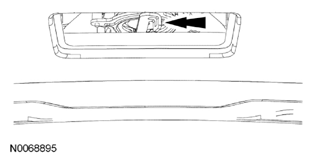

    Fig 2: Locating Liftgate Latch Manual Release Lever (Vehicles With Manual Liftgate)
    G07935066Courtesy of FORD MOTOR CO.
  2. Vehicles with manual liftgate, press the liftgate latch manual release lever to the left to release the liftgate latch.
    3. NOTE: Portions of the liftgate sheet metal are removed for clarity.
  3. Vehicles with power liftgate, press the liftgate latch manual release lever down to release the liftgate latch.

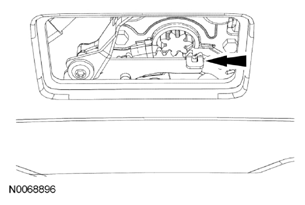

Fig 3: Locating Liftgate Latch Manual Release Lever (Vehicles With Power Liftgate)
G07935067Courtesy of FORD MOTOR CO.
