Rear Brake Pads: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION CHART
| Rear Caliper Piston Adjuster 206-026 (T87P-2588-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |

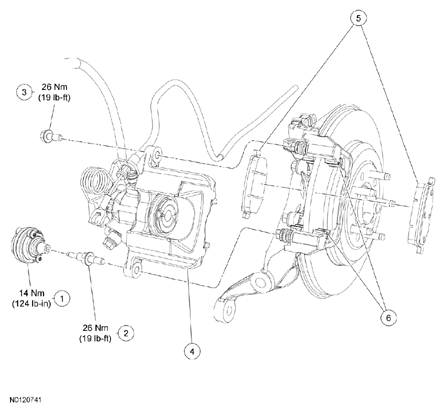

| Item | Part Number | Description |
|---|---|---|
| 1 | 4A263 | Brake noise damper |
| 2 | - | Brake caliper guide pin stud bolt (part of 2386) |
| 3 | - | Brake caliper guide pin bolt (part of 2386) |
| 4 | 2552 RH/2553 LH | Brake caliper |
| 5 | - | Brake pad (2 required) (part of 2200) |
| 6 | - | Brake pad slide clip (4 required) (part of 2200) |
