Rear Brake Caliper: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

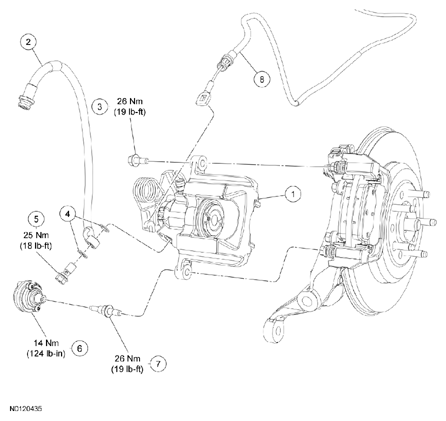

| Item | Part Number | Description |
|---|---|---|
| 1 | 2552 RH/2553 LH | Brake caliper |
| 2 | 2282 | Brake hose |
| 3 | - | Brake caliper guide pin bolt (part of 2386) |
| 4 | W711784 | Copper washers (2 required) |
| 5 | 2K573 | Brake caliper flow bolt |
| 6 | 4A263 | Brake noise damper |
| 7 | - | Brake caliper guide pin stud bolt (part of 2386) |
| 8 | 2A635B RH/2A635A LH | Parking brake cable |
