Front Brake Flexible Hose: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

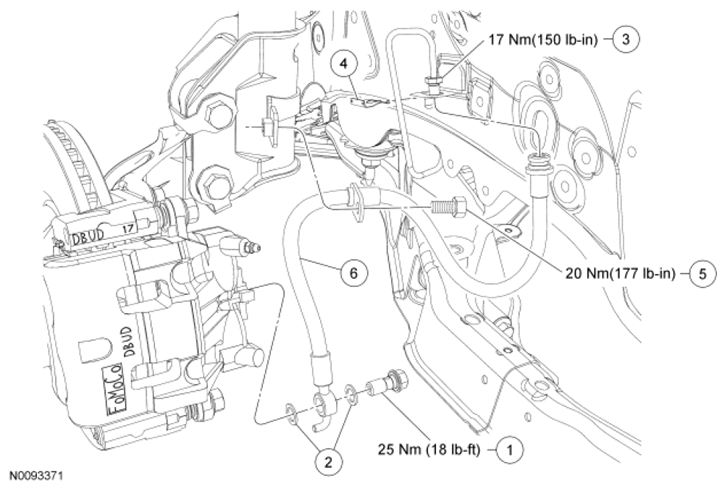

| Item | Part Number | Description |
|---|---|---|
| 1 | 2L122 | Brake caliper flow bolt |
| 2 | W711784 | Copper washers (2 required) |
| 3 | - | Brake tube fitting (part of 2263 RH/2264 LH) |
| 4 | 2B223 | Brake flexible hose retaining clip |
| 5 | W708004 | Brake flexible hose bracket bolt |
| 6 | 2078 | Brake flexible hose |
