Wheel Knuckle: Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION CHART
| Remover, Front Hub 205-D070 (D93P-1175-B) or equivalent |
|
| Remover, Tie-Rod End 211-105 (T85M-3395-A) |

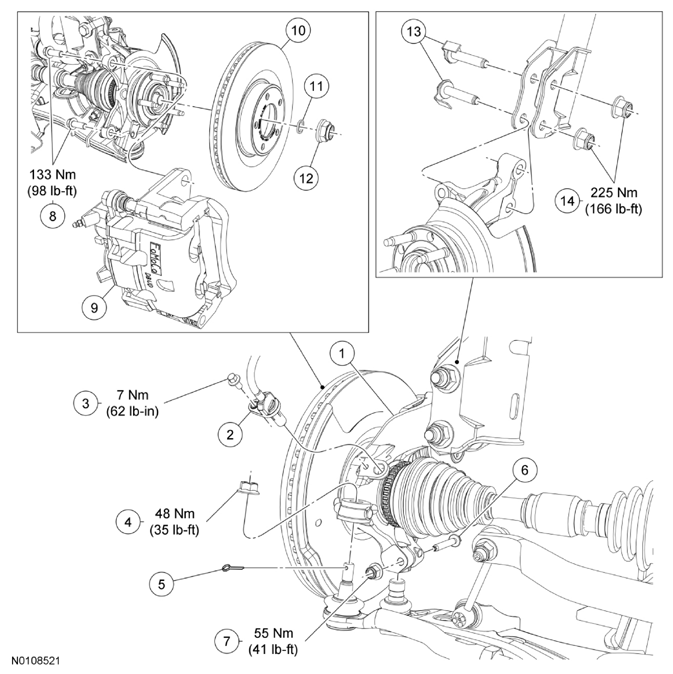

| Item | Part Number | Description |
|---|---|---|
| 1 | 3K171 LH/3K170 RH | Wheel knuckle |
| 2 | 2C204 RH/2C205 LH | Wheel speed sensor |
| 3 | W500222 | Wheel speed sensor bolt |
| 4 | W711889 | Tie-rod end nut |
| 5 | 3K176 | Tie-rod end cotter pin |
| 6 | W714681 | Ball joint lower bolt |
| 7 | W520213 | Ball joint lower nut |
| 8 | 2248 | Brake caliper anchor plate bolts (2 required) |
| 9 | - | Brake caliper and anchor plate assembly |
| 10 | 1032 | Brake disc |
| 11 | - | Halfshaft hub seal |
| 12 | 3N404 | Wheel hub nut |
| 13 | W714965 | Shock absorber lower flag bolts (2 required) |
| 14 | W520216 | Shock absorber lower nuts (2 required) |
