Power Liftgate Motor: Notes

WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

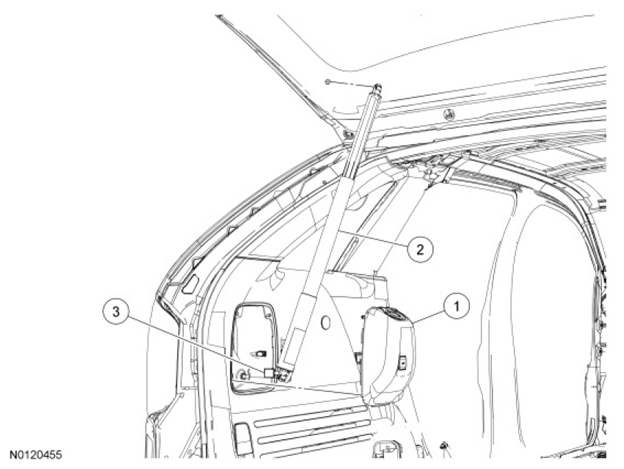

Fig 1: Identifying Power Liftgate Motor Components
G07406463Courtesy of FORD MOTOR CO.
Item Part Number Description
1 310C06 LH quarter trim panel access cover
2 14B351A Power liftgate motor assembly
3 - Power liftgate motor assembly electrical connector (part of 14B351A)
