Liftgate/Trunk Module (LTM): Notes
WARNING: This page is about a different car, the 2013 Lincoln MKX and 2013 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

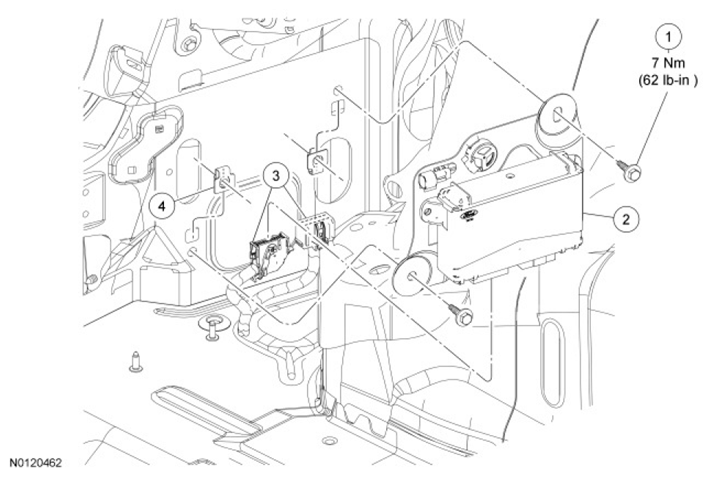

| Item |
Part Number |
Description |
| 1 |
W505424 |
Liftgate/Trunk Module (LTM) retaining bolt (2 required) |
| 2 |
14B291A |
LTM |
| 3 |
- |
LTM electrical connectors (part of 14A005) |
| 4 |
N802810 |
LTM nut (2 required) |
