Spark Plugs: Notes

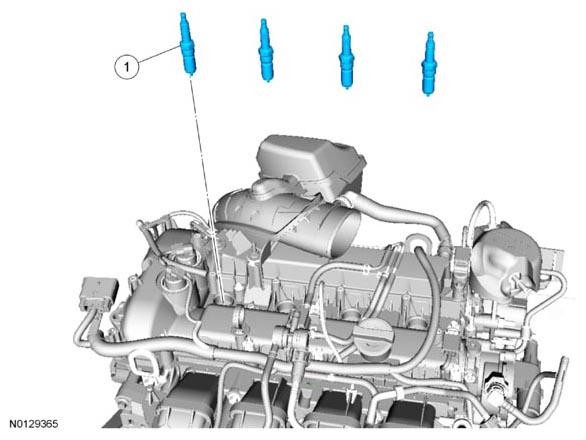

Fig 1: Identifying Spark Plugs
G07930771Courtesy of FORD MOTOR CO.
Item Part Number Description
1 CYFS-12Y-2 Spark plug (4 required) - 12 Nm (106 lb-in)
