Battery Current Sensor: Notes

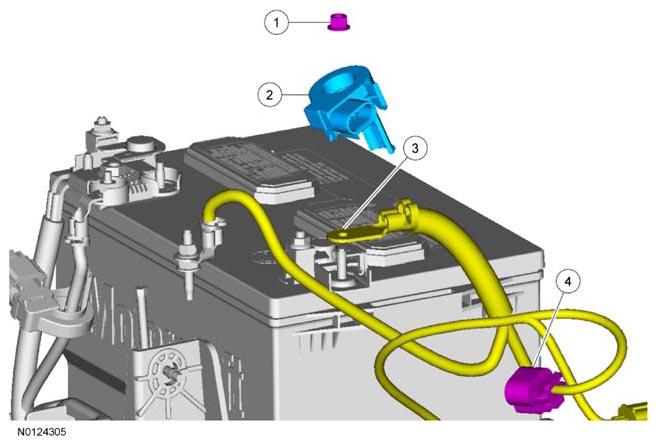

Fig 1: Identifying Battery Current Sensor Parts

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Battery terminal nut (part of 14300) - 9 Nm (80 lb-in)
2	14B357	Battery current sensor
3	-	Negative battery cable terminal (part of 14300)
4	-	Battery current sensor electrical connector (part of 14290)
