Removal and Installation

WARNING: This page is about a different variant/trim than selected.

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

All fuel tanks

Remove the fuel tank. For additional information, refer to FUEL TANK - MIDSHIP or FUEL TANK - AFT-OF-AXLE .
Place the fuel tank on a suitable work surface.
Midship fuel tank
Disconnect the fuel vapor tube-to-Fuel Pump (FP) quick connect coupling. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .

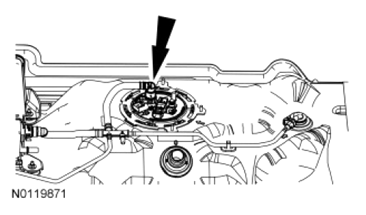

Fig 1: Locating Fuel Vapor Tube-To-Fuel Pump (FP) Quick Connect Coupling
Courtesy of FORD MOTOR CO.

All fuel tanks
Using the Fuel Tank Sender Unit Wrench, remove the FP module lock ring.

Fig 2: Identifying Fuel Tank Sender Unit - Wrench (310-123)
Courtesy of FORD MOTOR CO.

NOTE: If the FP does not clear the FP mounting flange on the fuel tank, the use of a screwdriver may be necessary.

Remove the FP and FP O-ring seal.
- If necessary, insert a screwdriver into the empty FP rod hole and slightly pull the screwdriver inboard until the base of the FP clears the FP mounting flange.
- Discard the FP O-ring seal.

  Fig 3: Locating FP O-Ring Seal
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install a new FP O-ring seal.
