Midship Fuel Tank

WARNING: This page is about a different variant/trim than selected.

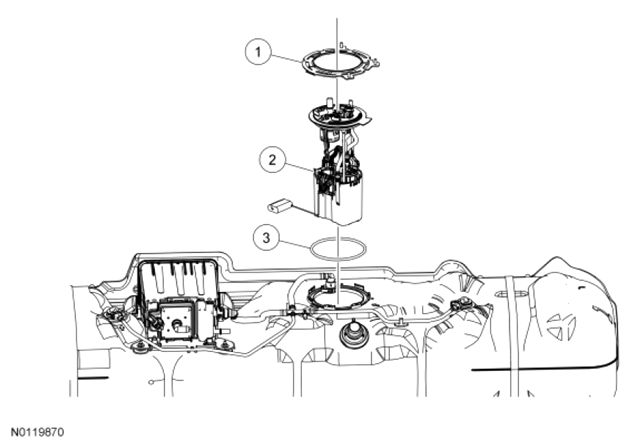

Fig 1: Identifying Midship Fuel Tank Components
G07447752Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9C385 Fuel Pump (FP) module lock ring
2 9H307 FP module
3 9276 FP module O-ring seal
