Seat control switch, driver side front
>>
Schematic
Seat control switch, driver side front: Schematic
WARNING:
This page is about a different variant/trim than selected.

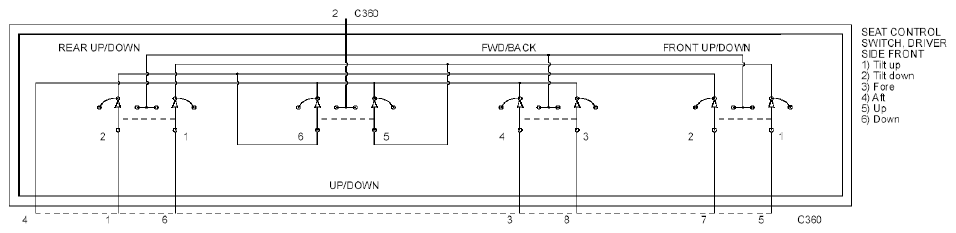

Fig 1: Schematic
Courtesy of FORD MOTOR CO.
