Component Testing: Schematic: Notes
WARNING:
This page is about a different variant/trim than selected.

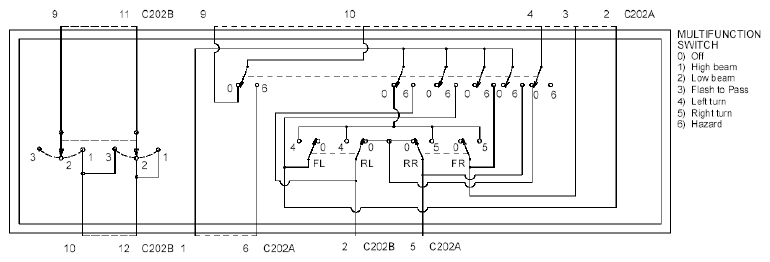

Fig 1: Multifunction Switch Schematic
Courtesy of FORD MOTOR CO.
