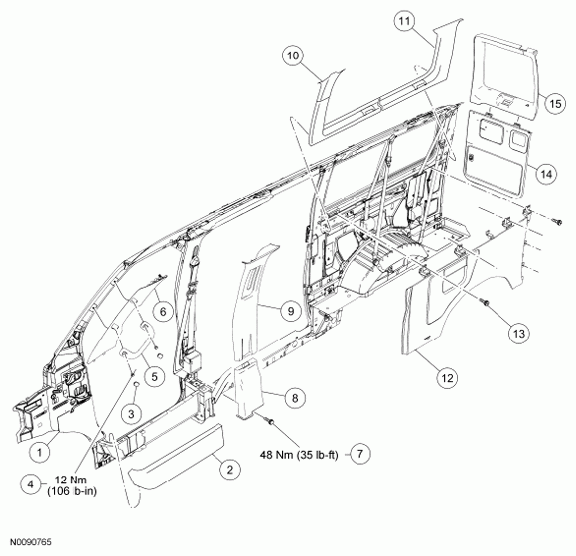

Interior Trim - Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 02349 | Cowl side trim panel (RH) |
| 2 | 13201 | Front door scuff plate (RH) |
| 3 | 31458 | Assist handle bolt cover (2 required) |
| 4 | W50001 | Assist handle bolt (2 required) |
| 5 | 31406 | Assist handle (RH) |
| 6 | 03598 | A-pillar trim panel |
| 7 | W704703 | B-pillar lower safety belt anchor bolt |
| 8 | 24356 | Lower B-pillar trim panel |
| 9 | 28155 | Upper B-pillar trim panel |
| 10 | 31004 | Upper front quarter trim panel (RH) |
| 11 | 31010 | Upper rear quarter trim panel (RH) |
| 12 | 31486 | Lower front quarter trim panel |
| 13 | 56912 | Lower front quarter trim panel bolt (6 required) |
| 14 | 45221 | Back door trim panel |
| 15 | 42325 | Back door window garnish molding |
- For additional information, refer to the appropriate procedures in this information .
