Removal And Installation: Thermostat: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Motorcraft® Premium Gold Engine Coolant VC-7-B (US); CVC-7-B (Canada) |
WSS-M97B51-A1 |

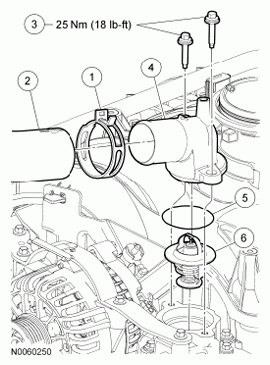

| Item | Part Number | Description |
|---|---|---|
| 1 | 15161 | Upper radiator hose clamp |
| 2 | 8B274 | Upper radiator hose |
| 3 | W704693 | Thermostat housing bolts (2 required) - 4.6L (2V) |
| 3 | N806178 | Thermostat housing bolts (2 required) - 5.4L (2V), 6.8L (2V) |
| 4 | 8592 | Thermostat housing |
| 5 | N806807 | Thermostat O-ring seal |
| 6 | 8575 | Thermostat |
