Coolant Pump: Notes

WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® Metal Surface Prep
ZC-31-A
-
Motorcraft® Premium Gold Engine Coolant
VC-7-B (US); CVC-7-B (Canada)
WSS-M97B51-A1

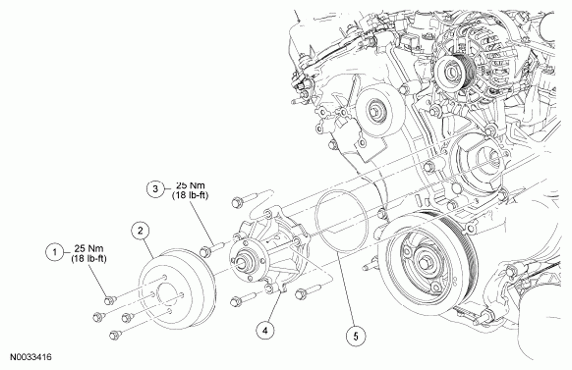

Fig 1: Coolant Pump Replacement Components With Torque Specifications
G06139371Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N806282 Coolant pump pulley bolt (4 required)
2 8509 Coolant pump pulley
3 N806177 Coolant pump bolt (4 required) - 4.6L (2V)
3 N808794 Coolant pump bolt (4 required) - 5.4L (2V), 6.8L (2V)
4 8501 Coolant pump
5 391108 Coolant pump O-ring seal
