Antenna - Satellite Radio: Notes

WARNING: This page is about a different variant/trim than selected.

Lower Satellite Radio Antenna Cable (Without Navigation)

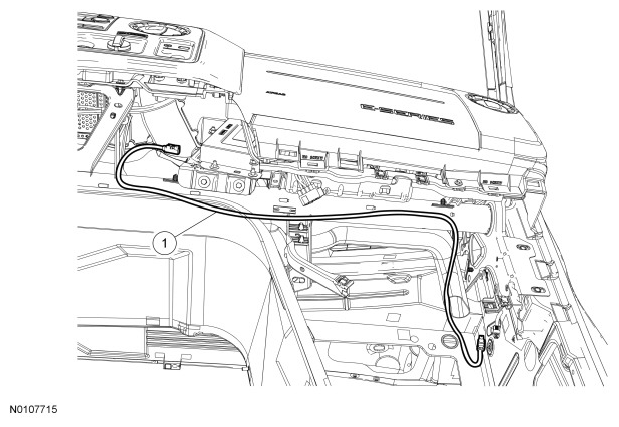

Fig 1: Identifying Lower Satellite Radio Antenna Cable (Without Navigation)
G06602057Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19A397 Lower satellite radio antenna cable (Without Navigation)

Lower Satellite Radio Antenna Cable (With Navgation)

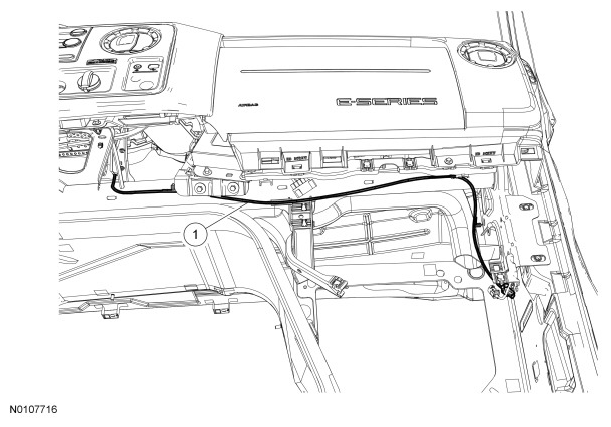

Fig 2: Identifying Lower Satellite Radio Antenna Cable (With Navgation)
G06602058Courtesy of FORD MOTOR CO.
Item Part Number Description
1 10E928 Lower satellite radio antenna cable
