Steering Column Shroud: Notes

WARNING: This page is about a different variant/trim than selected.

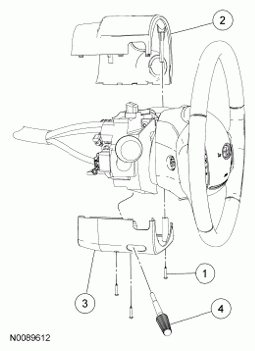

Fig 1: Exploded View Of Steering Column Shroud
G06137249Courtesy of FORD MOTOR CO.
Item Part Number Description
1 55929 Steering column shroud screw (3 required)
2 3530 Upper steering column shroud
3 3530 Lower steering column shroud
4 3F609 Tilt release lever/handle
