Commercial Chassis: Notes

WARNING: This page is about a different variant/trim than selected.

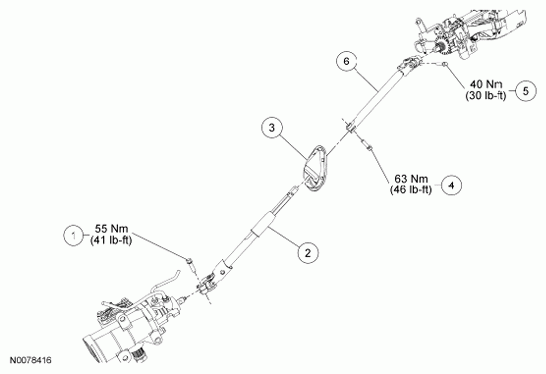

Fig 1: Steering Column Shaft Replacement Components With Torque Specifications - Commercial Chassis
G06137247Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N803942 Steering column shaft-to-steering gear bolt
2 3C662 Steering column shaft
3 3D677 Steering column shaft dash seal
4 N803942 Upper steering column shaft-to-lower steering column shaft bolt
5 N803942 Upper steering column shaft-to-steering column bolt
6 9E751 Upper steering column shaft
