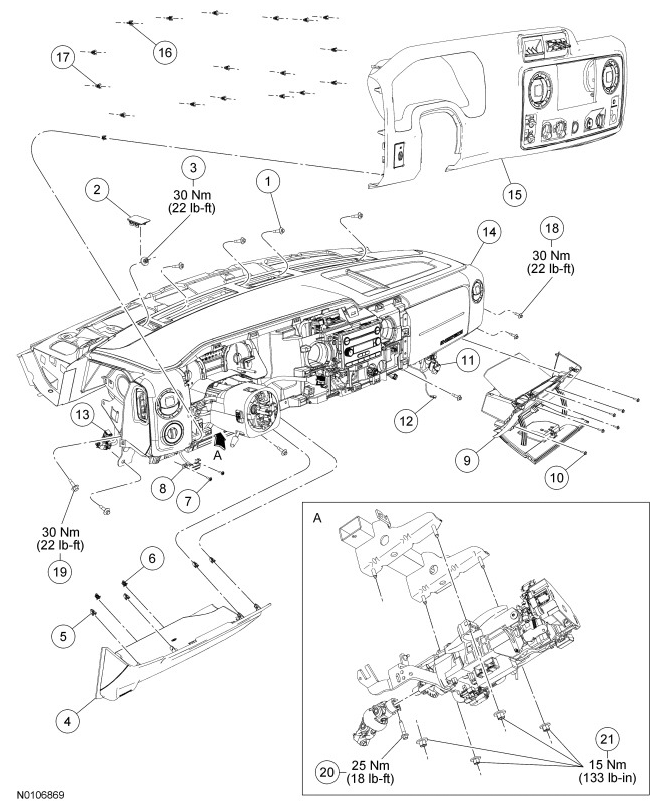

Panels and Fasteners
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 707607 | Instrument panel cowl top screw (4 required) |
| 2 | 044D82 | LH upper access panel |
| 3 | N804620 | Instrument panel cowl top nut |
| 4 | 04459 | Steering column opening cover |
| 5 | 09161 | Clip retainer (4 required) |
| 6 | 15044 | Clip retainer (2 required) |
| 7 | N803876 | Data Link Connector (DLC) screw (2 required) |
| 8 | 14489 | DLC |
| 9 | - | Glove compartment |
| 10 | W707628 | Glove compartment screw (6 required) |
| 11 | 14401 | Electrical connector |
| 12 | - | Satellite radio connector (if equipped) |
| 13 | 14401 | Electrical connector |
| 14 | 04320 | Instrument panel |
| 15 | 044D70 | Instrument cluster finish panel |
| 16 | 09161 | Instrument cluster finish panel retainer clip (15 required) |
| 17 | 044D70 | Instrument cluster finish panel retainer clip (3 required) |
| 18 | N811430 | Instrument panel bolt (6 required) |
| 19 | W704801 | Instrument panel bolt |
| 20 | N808684 | Steering column pinch bolt |
| 21 | N806423 | Steering column nuts (4 required) |
