Headlamp Switch: Notes

WARNING: This page is about a different variant/trim than selected.

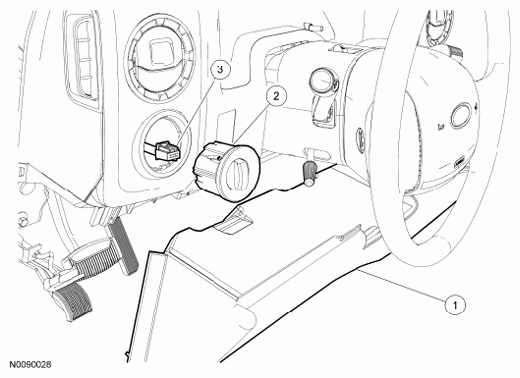

Fig 1: Identifying Headlamp Switch And Electrical Connectors
G06141929Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1504320 Steering column reinforcement cover
2 11654 Headlamp switch
3 - Headlamp switch electrical connector (part of 14401)
