Stabilizer Bar Link: Notes

WARNING: This page is about a different variant/trim than selected.

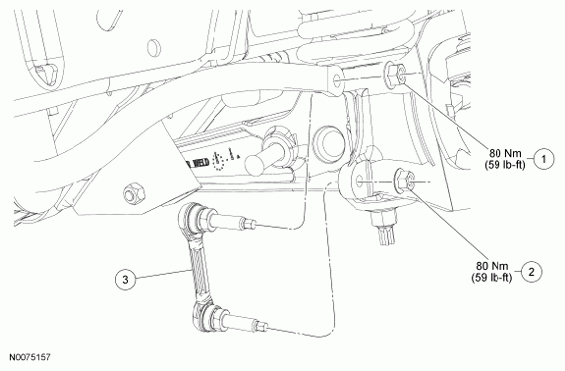

Fig 1: Stabilizer Bar Link Replacement Components With Torque Specifications
G06136780Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W710269 Stabilizer bar link lower nut (2 required)
2 W710269 Stabilizer bar link upper nut (2 required)
3 5K483 Stabilizer bar link
