Parking Aid Module (PAM): Notes

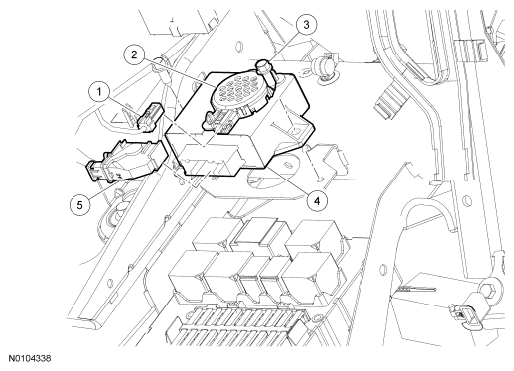

Fig 1: Identifying Parking Aid Module (PAM) Components

Courtesy of FORD MOTOR CO.

PARKING AID MODULE (PAM) PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Parking aid speaker electrical connector (part of 14401)
2	15K864	Parking aid speaker
3	W504083	Parking Aid Module (PAM) bolts (2 required)
4	15K866	PAM
5	-	PAM electrical connector (part of 14401)
