Transaxle Support Insulator: Removal

  1. Remove the battery and battery tray. For additional information, refer to BATTERY, BATTERY MOUNTING SYSTEM & BATTERY CABLES article.
  2. Install the Engine Support Bar, Engine Lifting Bracket and Adapters and support the engine.

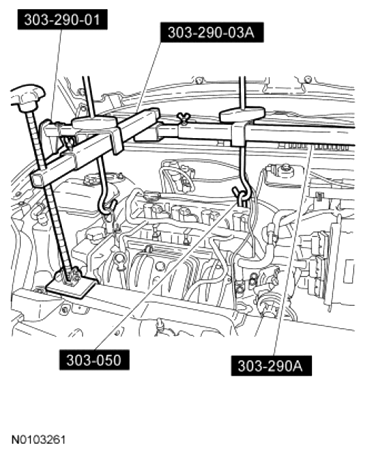

    Fig 1: Identifying Engine Support Bar, Engine Lifting Bracket And Adapters
    G07496223Courtesy of FORD MOTOR CO.
  3. Remove the transaxle support insulator nuts and remove the transaxle support insulator.

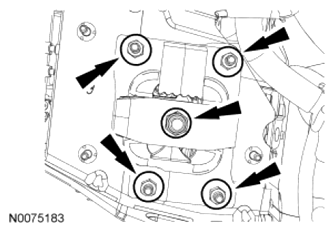

    Fig 2: Remove/Install Transaxle Support Insulator Nuts
    G07496224Courtesy of FORD MOTOR CO.
