Forward Clutch: Disassembly

Remove the forward clutch pressure, friction and steel plates.
1. Remove the retaining ring.
2. Remove the plates.

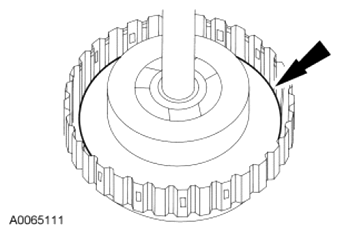

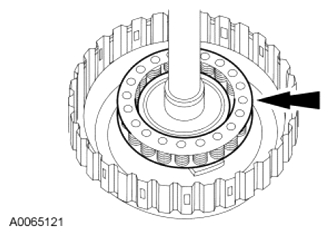

Fig 1: Identifying Forward Clutch Pressure, Friction And Steel Plates With Retaining Ring
Courtesy of FORD MOTOR CO.
Using the Spring Washer Compressor, install the forward clutch assembly in a suitable press.

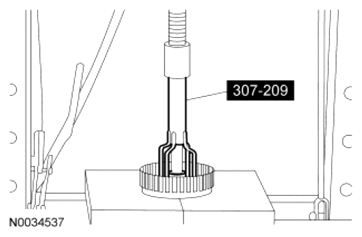

Fig 2: Installing Forward Clutch Assembly
Courtesy of FORD MOTOR CO.
Using the Spring Washer Compressor, remove the forward clutch balance piston snap ring.

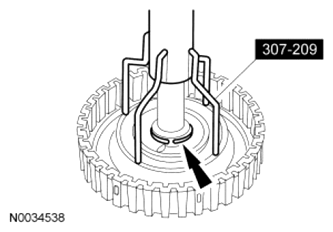

Fig 3: Remove/Install Forward Clutch Balance Piston Snap Ring
Courtesy of FORD MOTOR CO.

NOTE: If damage to the forward clutch balance piston seals is found, install a new balance piston.

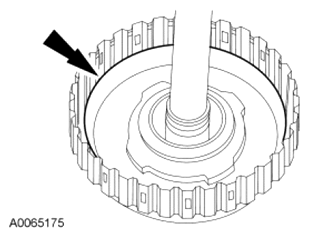

Fig 4: Locating Forward Clutch Balance Piston

Courtesy of FORD MOTOR CO.

Remove and inspect the forward clutch balance piston.
Remove the forward piston return spring.

Fig 5: Locating Forward Piston Return Spring
Courtesy of FORD MOTOR CO.

NOTE: If damage is found to the forward clutch piston seals, install a new forward clutch piston.

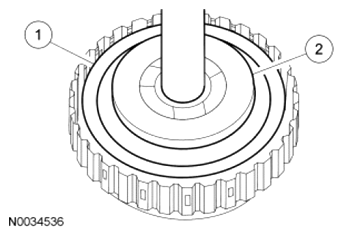

Fig 6: Identifying Forward Clutch Piston Assembly
