Radio Remote Control Switch Connector - C2264

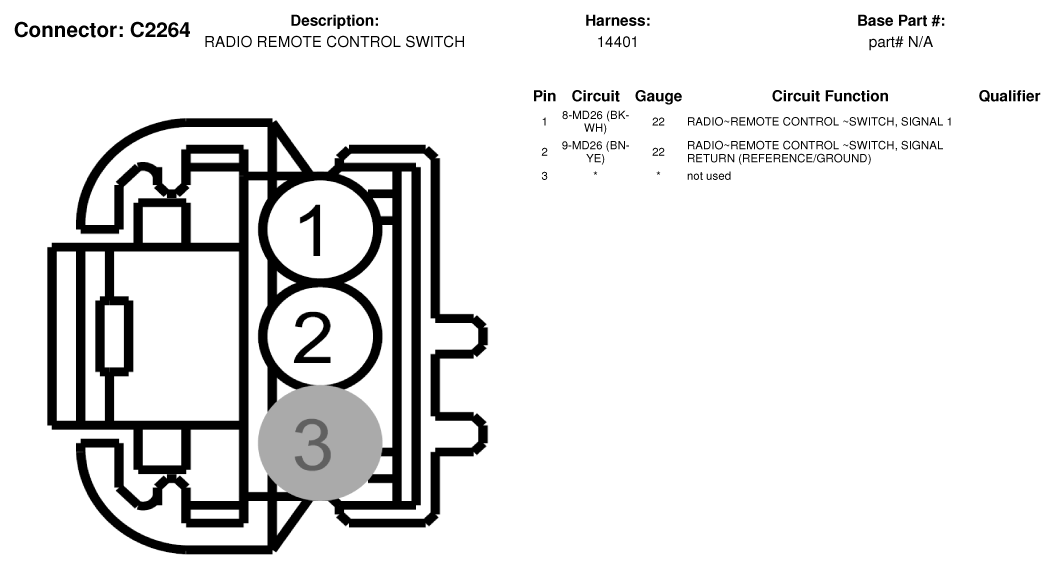

Fig 1: Radio Remote Control Switch Connector End View (C2264)

G07337406

Courtesy of FORD MOTOR CO.
