Parking Aid Module Connector - C2023

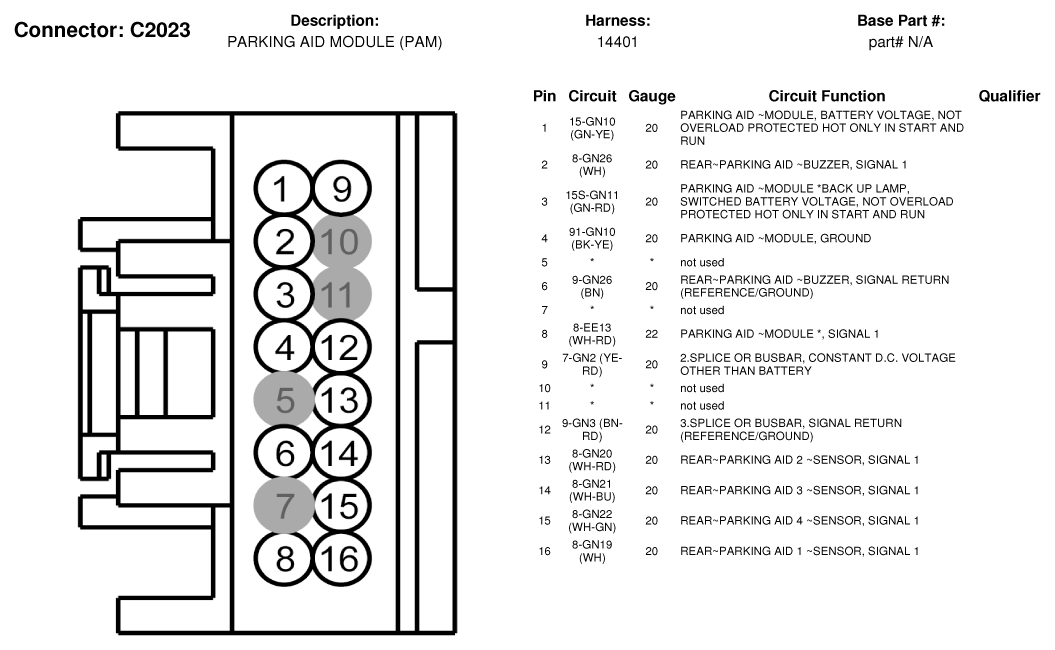

Fig 1: Parking Aid Module Connector End View (C2023)

G07337395

Courtesy of FORD MOTOR CO.
