Valve Train Components - Exploded View

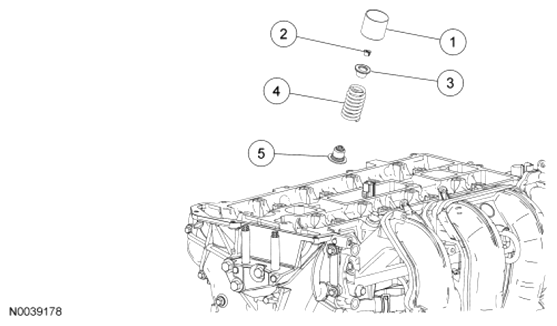

Fig 1: Exploded View Of Valve Train Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	6500	Valve tappet (16 required)
2	6518	Valve collet (16 required)
3	6514	Valve spring retainer (16 required)
4	6513	Valve spring (16 required)
5	6517	Valve seal (16 required)

1. For additional information, refer to the appropriate procedures in this service information.
