Console - Floor: Notes

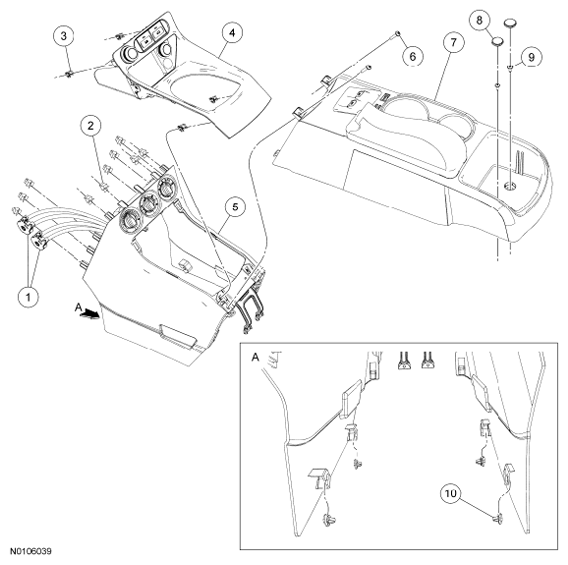

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 18549 | Temperature control and mode control cables |
| 2 | W700970 | Front floor console section retaining clip (10 required) |
| 3 | W700970 | Selector lever trim panel retaining clip (4 required) |
| 4 | 061B38 | Selector lever trim panel |
| 5 | 04567 | Front floor console section |
| 6 | W502664 | Front-to-rear floor console screw (2 required) |
| 7 | 04567 | Rear floor console section |
| 8 | 422B88 | Rear floor console section screw cover (2 required) |
| 9 | W502660 | Rear floor console section screw (2 required) |
| 10 | 353129 | Front floor console section pin-type retainer (4 required) |
