Special Tool(s)

SPECIAL TOOL REFERENCE

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

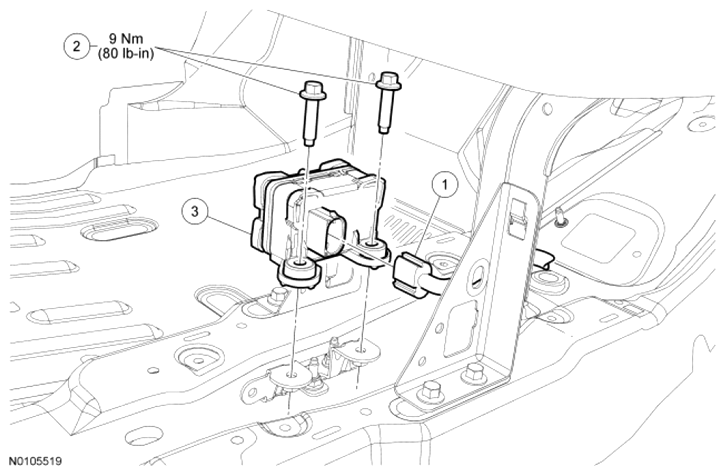

Fig 1: Stability Control Sensor Cluster Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	-	Stability control sensor cluster electrical connector (part of 14401)
2	W500215	Stability control sensor cluster bolts (2 required)
3	14B296	Stability control sensor cluster
