Seat - Front: Notes

NOTE: LH shown in illustration, RH similar.

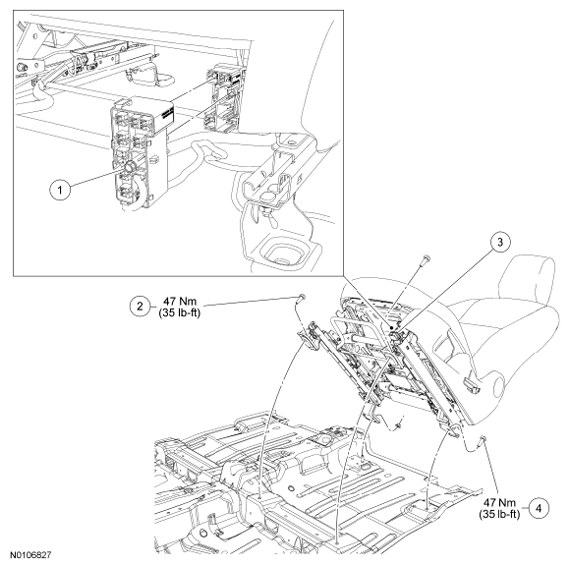

Fig 1: Exploded View Of Front Seat Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Seat electrical bulkhead connector bolt (part of 14A005)
2	-	Seat mounting bolt (3 required)
3	-	Seat electrical bulkhead connector (part of 14A699)
4	-	Seat mounting nut
