Backrest Removal View: Notes
NOTE:

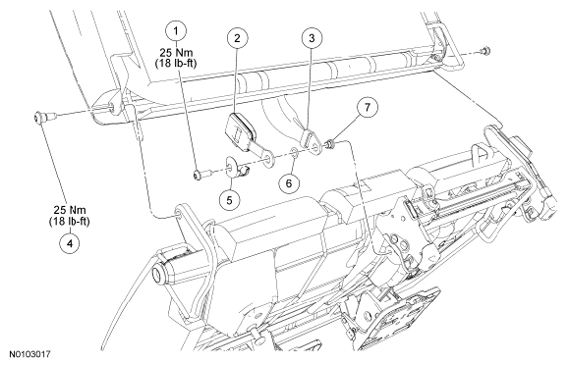

LH shown in illustration, RH similar.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 00813 | Center safety belt anchor and LH safety belt buckle bolt |
| 2 | 60045 | LH safety belt buckle |
| 3 | - | Center safety belt anchor (part of 611B68) |
| 4 | W701210 | Backrest bolt (2 required) |
| 5 | 60328 | Safety belt buckle and anchor cover |
| 6 | 00810 | Washer |
| 7 | 610D00 | Spacer |
