Stability Control Sensor Module Connector - C3073

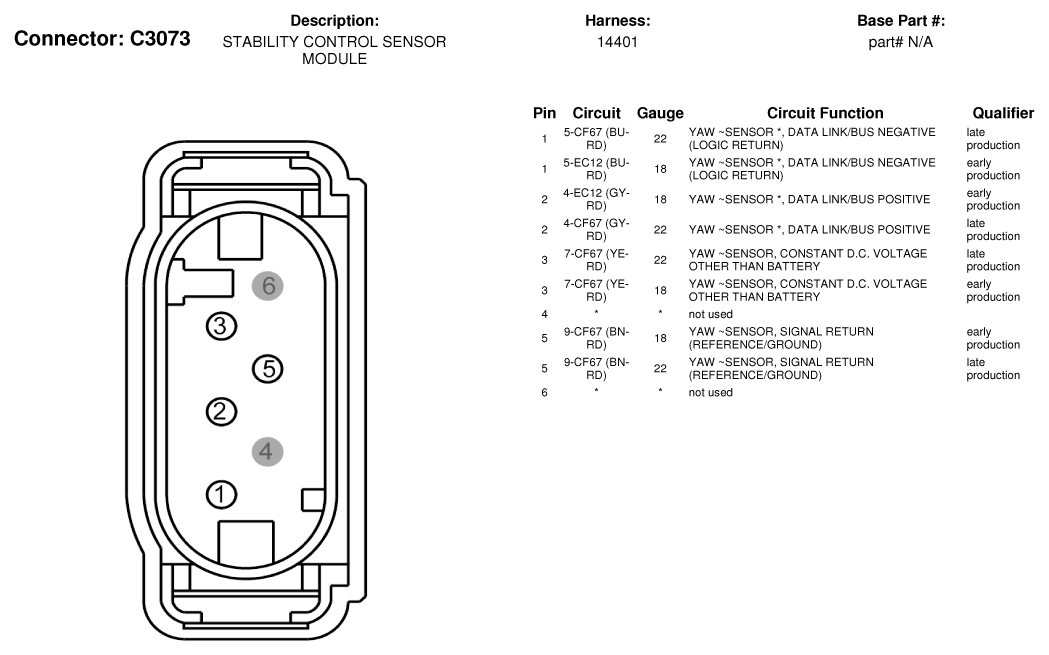

Fig 1: Stability Control Sensor Module Connector End View (C3073)

G07337427

Courtesy of FORD MOTOR CO.
