Speech Recognition Module Connector - C2307

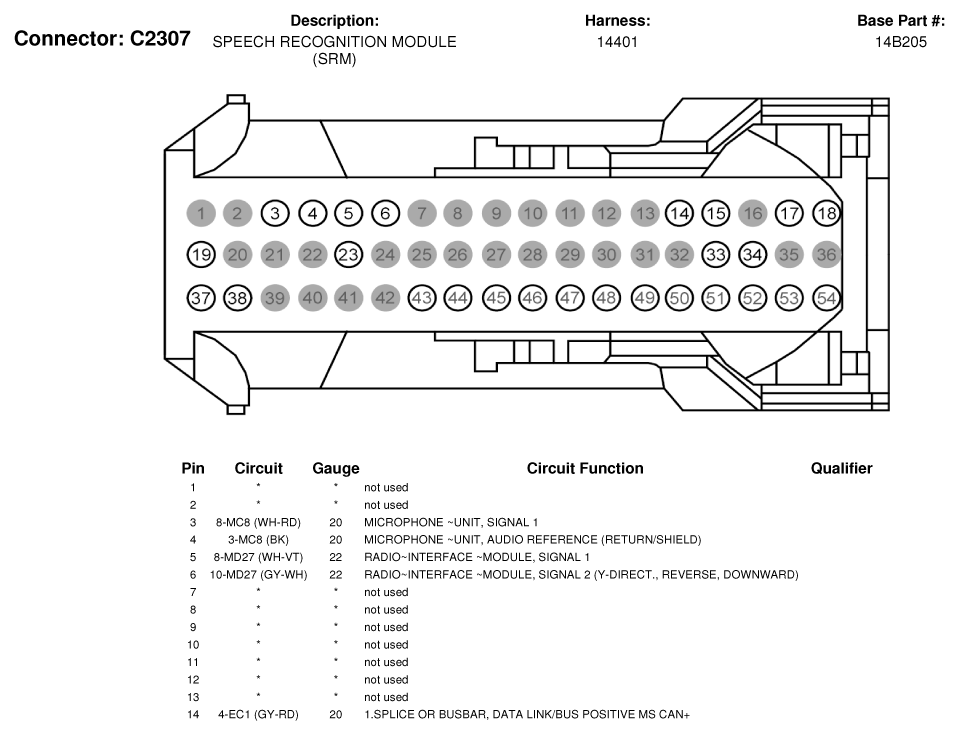

Fig 1: Speech Recognition Module Connector End View (C2307) (1 Of 2)
G07337407Courtesy of FORD MOTOR CO.

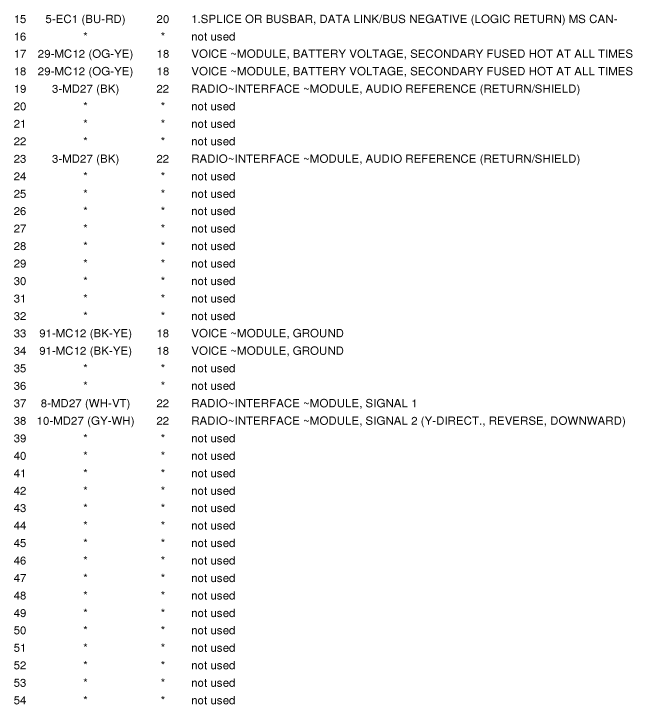

Fig 2: Speech Recognition Module Connector End View (C2307) (2 Of 2)
G07337408Courtesy of FORD MOTOR CO.
