Compression Pressure Limit Chart

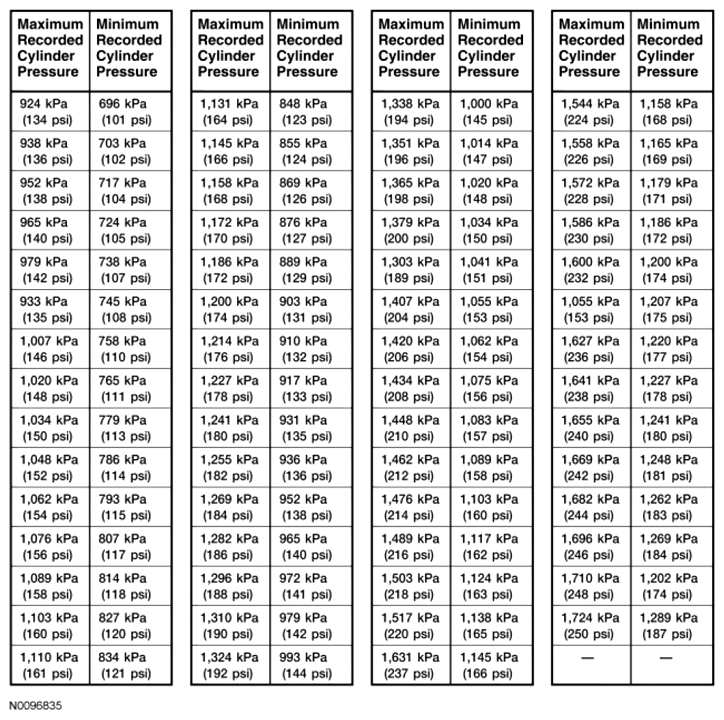

Fig 1: View Of Compression Pressure Limit Chart
G07495363Courtesy of FORD MOTOR CO.

If one or more cylinders reads low, squirt approximately one tablespoon of engine oil meeting Ford specification on top of the pistons in the low-reading cylinders. Repeat the compression pressure check on these cylinders.
