Transaxle Support Insulator - Anti-Roll, 3.5L: Notes

MATERIAL

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

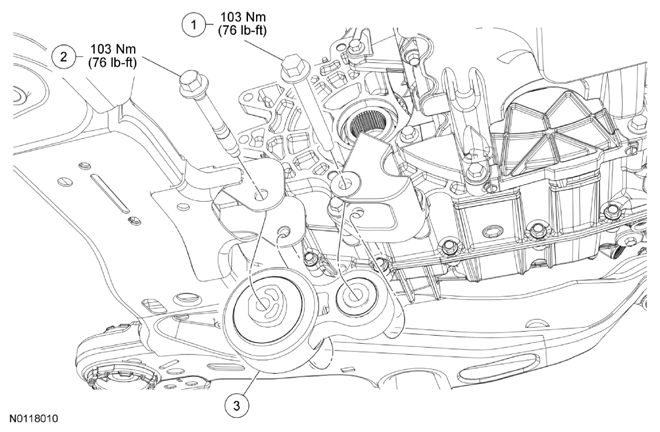

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - Anti-Roll, 3.5L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709128	Roll restrictor-to-transaxle bracket through bolt
2	W713156	Roll restrictor-to-subframe through bolt
3	6P082	Roll restrictor
