Transaxle Support Insulator - 3.5L: Notes

SPECIAL TOOL(S)

Oil Pan Holding Fixture 303-1295

MATERIAL

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

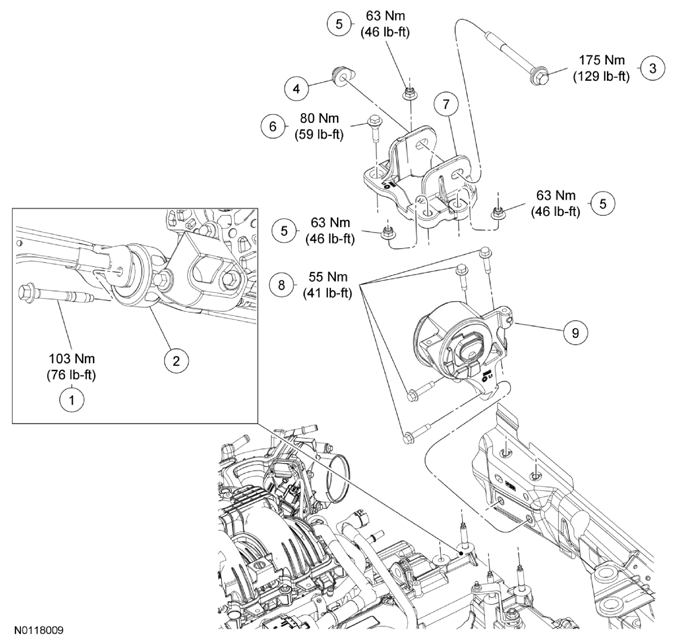

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.5L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713156	Roll restrictor-to-subframe through bolt
2	6P082	Roll restrictor assembly
3	W711873	Through bolt - transaxle support insulator
4	W711872	Flange nut - transaxle support insulator through bolt
5	W714682	Nuts - transaxle support insulator bracket
6	W712711	Bolt - transaxle support insulator bracket
7	6B033	Bracket - transaxle support insulator
8	W709234	Bolts - transaxle support insulator
9	6F020	Transaxle support insulator
