Transaxle Support Insulator - 3.5L GTDI: Notes

SPECIAL TOOL(S)

	Bar, Engine Spreader 303-1454
	Eye, Engine Lift 303-1245
	Support Bar, Engine 303-F072

MATERIAL

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

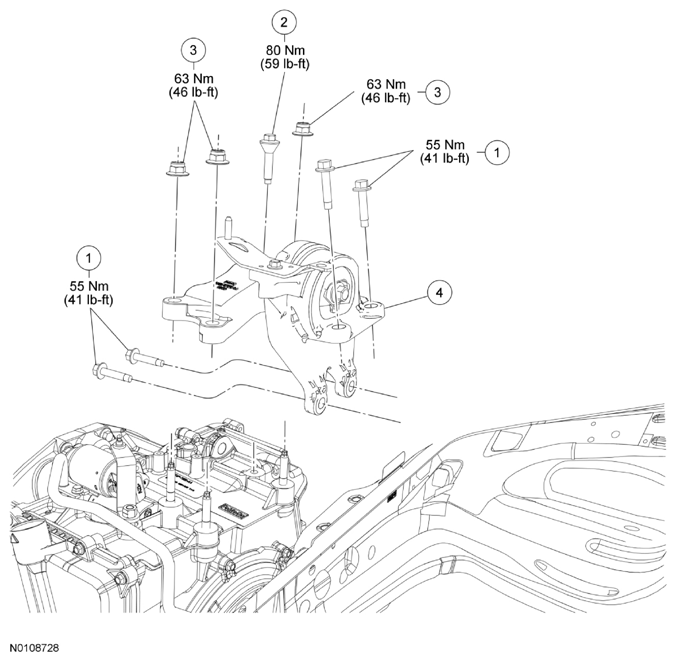

Fig 1: Exploded View Of Transaxle Support Insulator With Torque Specifications - 3.5L GTDI

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709234	Transaxle support insulator bolts
2	W712711	Transaxle support insulator bracket bolt
3	W714682	Transaxle support insulator bracket nuts
4	6F020	Transaxle support insulator
