Manual Control Lever Shaft Seal: Notes
SPECIAL TOOL(S)
| Manual Lever Retaining Pin Installer 307-592 |
|
| Manual Lever Shaft Seal Installer 307-581 |
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC |
MERCON® LV |

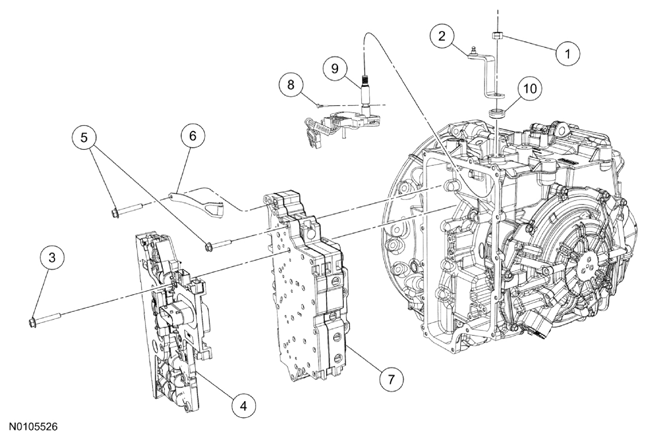

| Item | Part Number | Description |
|---|---|---|
| 1 | W711892 | Manual control lever nut |
| 2 | 7A256 | Manual control lever |
| 3 | 7J291 | Bolt - solenoid body |
| 4 | 7Z369 | Solenoid body |
| 5 | 7J291 | Bolts - valve body |
| 6 | 7E332 | Manual valve detent spring |
| 7 | 7A100 | Valve body |
| 8 | 7B210 | Transmission Range (TR) sensor pin |
| 9 | 7H557 | TR sensor |
| 10 | 7F337 | Manual control shaft seal |
