Main Control Cover - 3.5L GTDI: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING Article.
Remove the Air Cleaner (ACL) and outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM Article.
Remove the brake booster vacuum tube from the LH turbocharger air inlet hose.

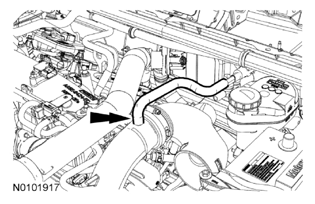

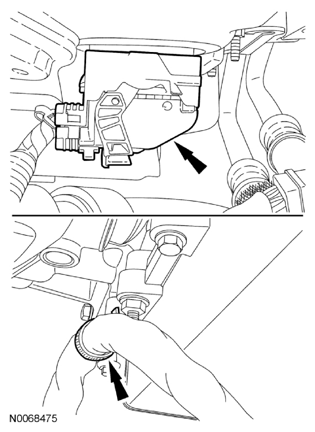

Fig 1: Locating Brake Booster Vacuum Tube Of LH Turbocharger Air Inlet Hose
Courtesy of FORD MOTOR CO.
Remove the vacuum tube from the LH turbocharger air inlet hose.

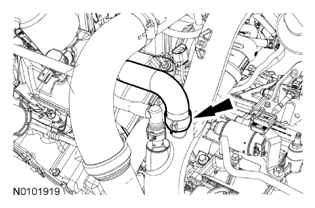

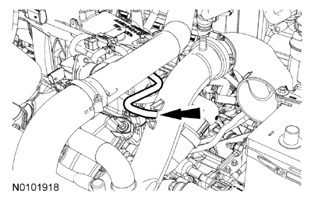

Fig 2: Locating Vacuum Tube Of LH Turbocharger Air Inlet Hose
Courtesy of FORD MOTOR CO.
Compress the constant tension clamp and remove the bypass hose from the LH turbocharger air inlet hose.

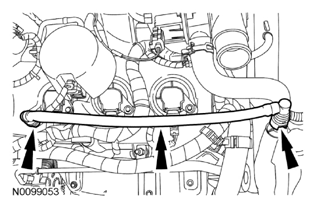

Fig 3: Locating Bypass Hose Of LH Turbocharger Air Inlet Hose
Courtesy of FORD MOTOR CO.
Disconnect the 2 quick connect couplings and remove the crankcase vent tube.

Fig 4: Locating Quick Connect Couplings And Crankcase Vent Tube
Courtesy of FORD MOTOR CO.
Loosen the 2 clamps and remove the LH turbo inlet tube.

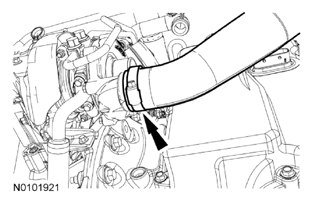

Fig 5: Locating LH Turbo Inlet Tube Clamp
Courtesy of FORD MOTOR CO.
Remove the 4 retainers and the underbody shield.

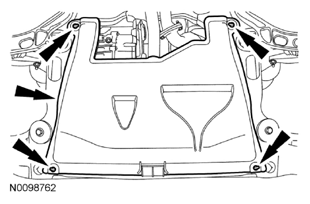

Fig 6: Locating Underbody Shield With Retainers
Courtesy of FORD MOTOR CO.
Loosen the clamp and disconnect the LH turbocharger-to-Charge Air Cooler (CAC) hose from the turbocharger and position it.

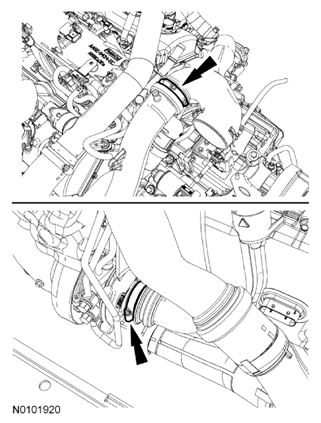

Fig 7: Locating LH Turbocharger-To-Charge Air Cooler Hose Clamp
Courtesy of FORD MOTOR CO.
Remove the transmission fluid drain plug and allow the transmission fluid to drain.

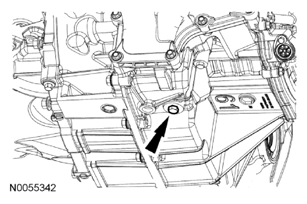

Fig 8: Locating Transmission Fluid Drain Plug
Courtesy of FORD MOTOR CO.
Install the transmission fluid drain plug.
- Tighten to 9 Nm (80 lb-in).

  Fig 9: Locating Transmission Fluid Drain Plug
  Courtesy of FORD MOTOR CO.
Disconnect the transaxle electrical connector and remove the wiring harness fastener from the main control cover stud.

Fig 10: Locating Transaxle Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 2 nuts, pull the transmission fluid cooler thermal bypass valve off of the main control cover stud bolts and position it.

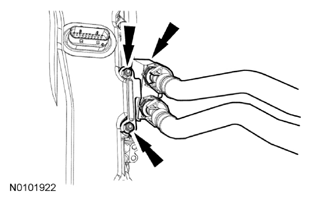

Fig 11: Locating Transmission Fluid Cooler Thermal Bypass Valve And Nuts
Courtesy of FORD MOTOR CO.

NOTE: Note the location of the stud bolts for assembly.

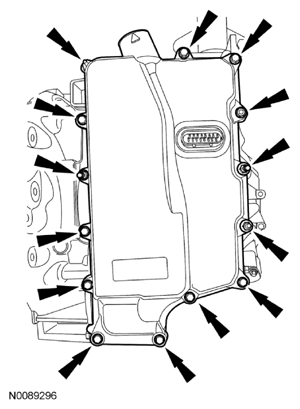

Fig 12: Locating Main Control Cover Bolts

Courtesy of FORD MOTOR CO.

Remove the 14 bolts and the main control cover.
