Solenoid Body Assembly: Notes

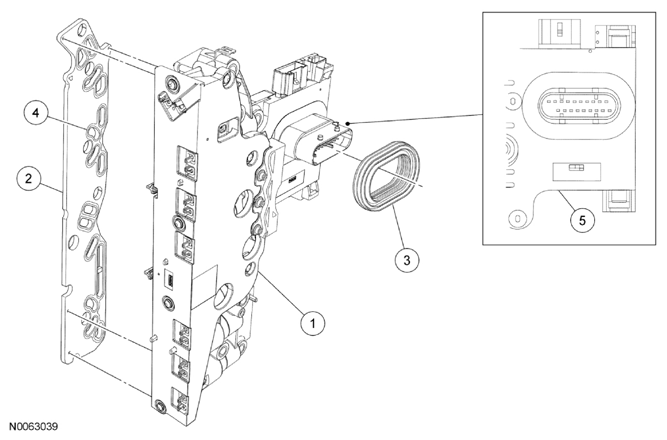

Fig 1: Identifying Solenoid Body Assembly Components
G07809969Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7Z369 Solenoid body
2 7H200 Solenoid body filter
3 7B329 Seal - solenoid body electrical connector
4 - Solenoid body filter screen
5 - Leadframe area
