Automatic Transmission - Automatic Transaxle/Transmission - 6F50/6F55
>>
Description And Operation
>>
Transaxle Operation
>>
3rd Gear
>>
Notes
3rd Gear: Notes

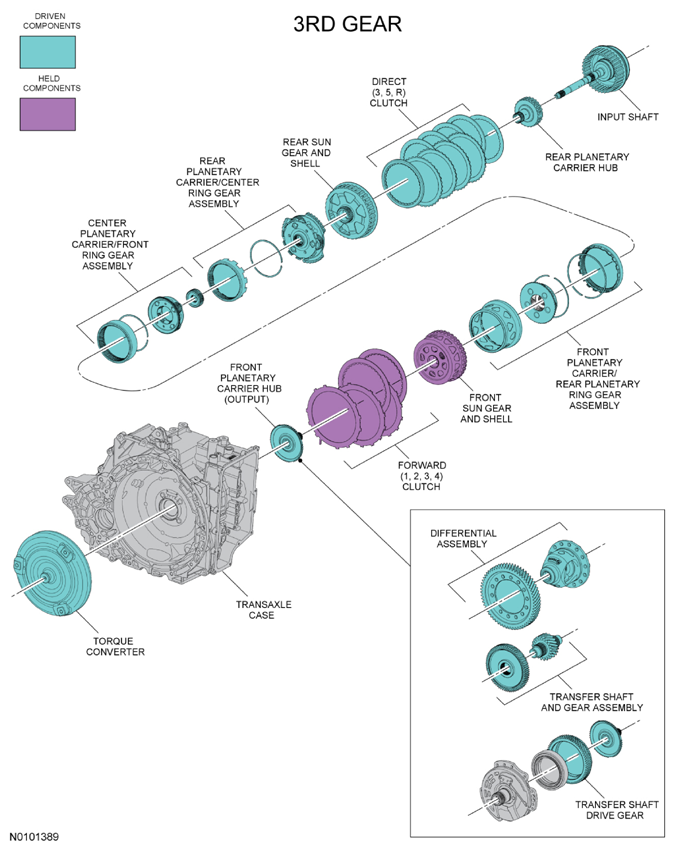

Fig 1: Exploded View Of Transaxle 3rd Gear
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
