Passenger Safety Canopy Module Connector - C9032

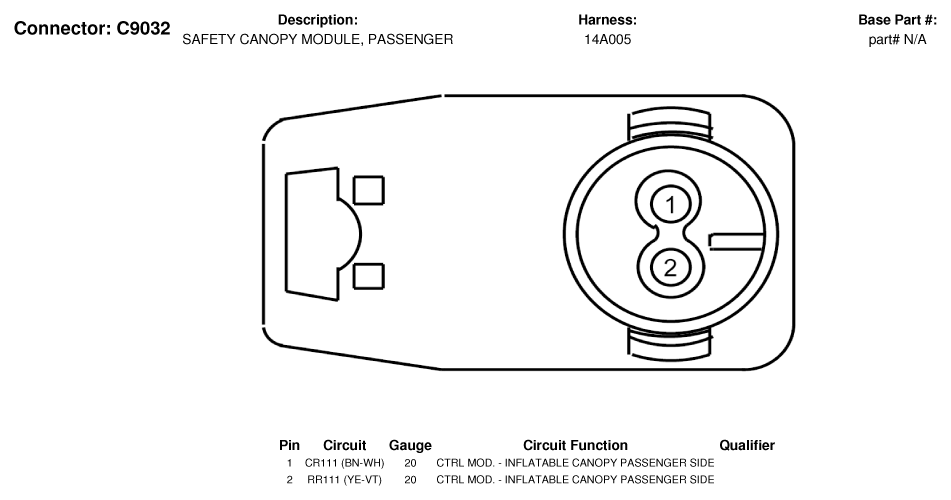

Fig 1: Passenger Safety Canopy Module Connector End View (C9032)

G07340252

Courtesy of FORD MOTOR CO.
