In-Vehicle Temperature Sensor Connector - C233
In-Vehicle Temperature Sensor Connector - C233

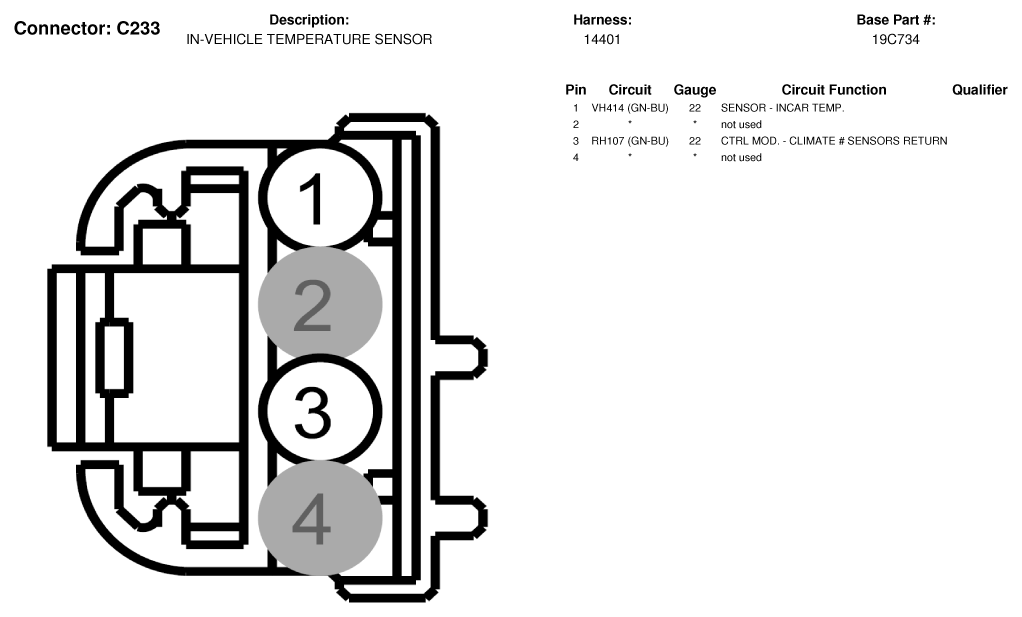

Fig 1: In-Vehicle Temperature Sensor Connector End View (C233)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
