Driver Side Air Bag Module Connector - C367

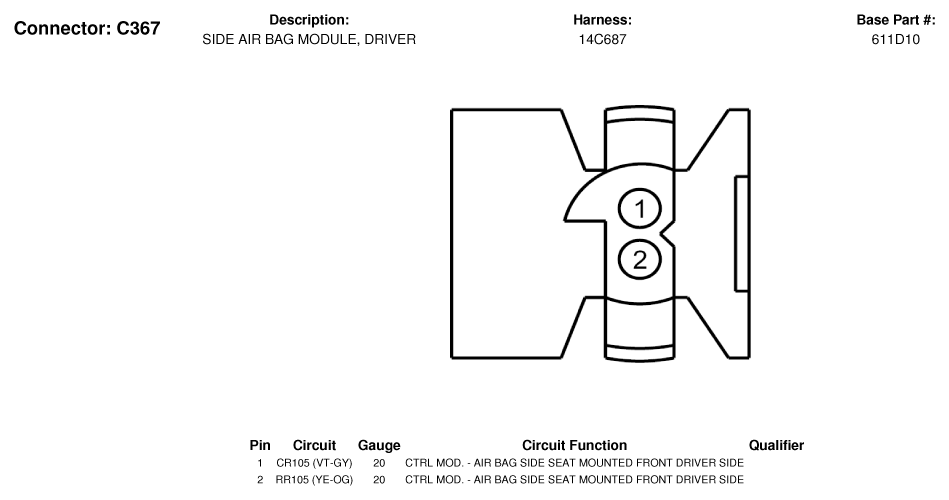

Fig 1: Driver Side Air Bag Module Connector End View (C367)

G07339979

Courtesy of FORD MOTOR CO.
