Driver Safety Canopy Module Connector - C9031

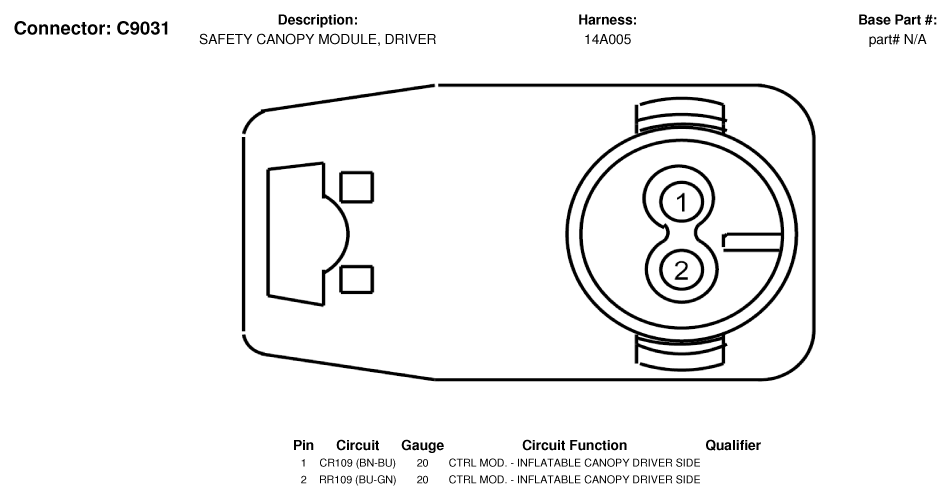

Fig 1: Driver Safety Canopy Module Connector End View (C9031)

G07340251

Courtesy of FORD MOTOR CO.
