General Procedures: Sprockets

  1. Inspect the sprockets for cracks and worn or chipped teeth.

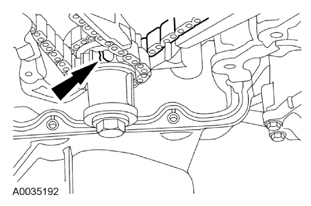

    Fig 1: Locating Damage Sprockets
    G07806376Courtesy of FORD MOTOR CO.
